The Y-2 is an AC electromagnetic yoke, ergonomically designed to improve productivity and reduce operator arm and wrist fatigue. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

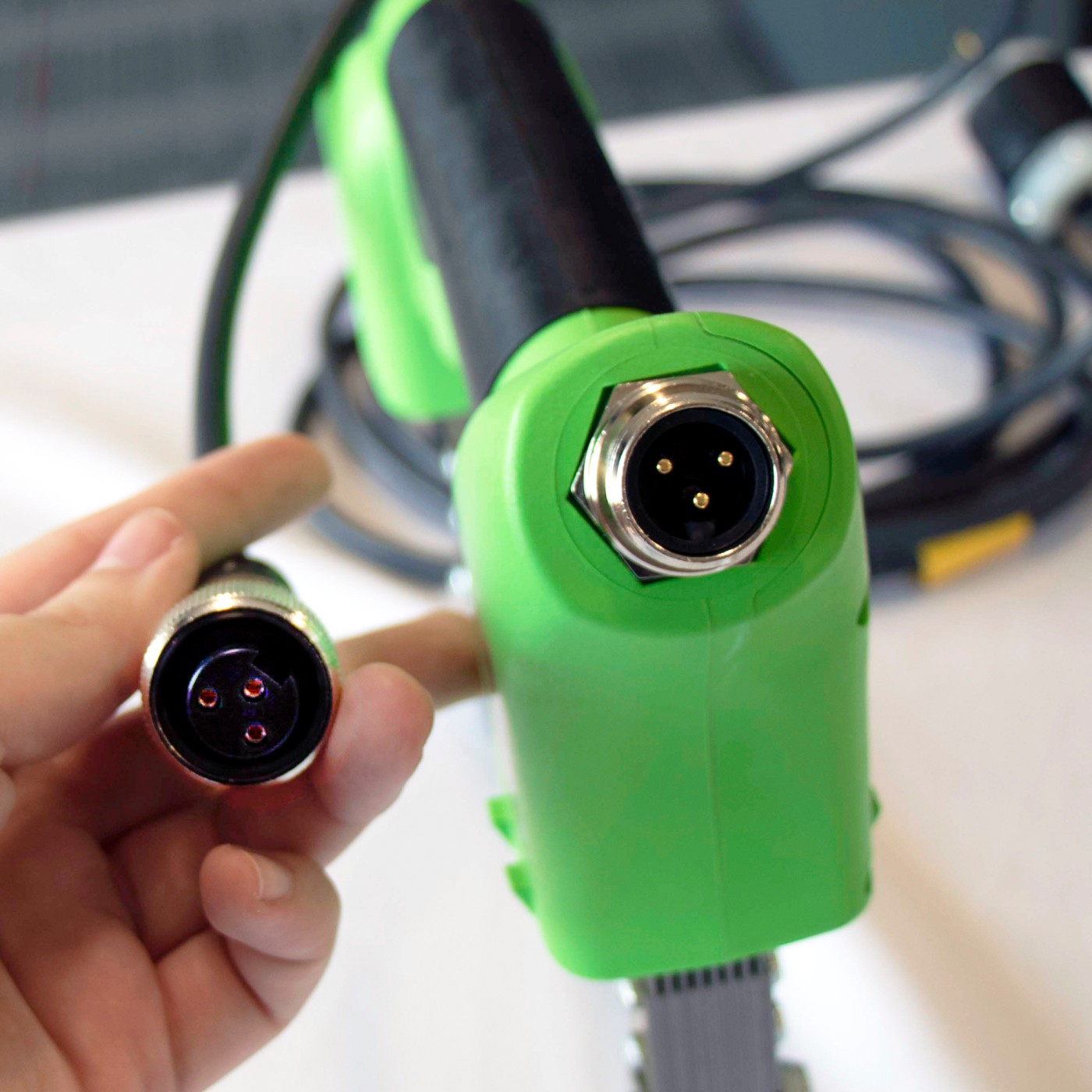

Lightweight with an ergonomic grip and trigger, the Y-2 is designed for the rugged demands of field inspection. Featuring a field swappable cord and isolated trigger switch; the Y-2 is easily serviceable because a severed cord should not stop a job from getting done.
| Technical information | |
|---|---|
|
NDT Type |
Magnetic Particle Testing |
Ideal ApplicationAerospace:
Demanding environments, Field testing, In-service inspections, Spot inspections, Weld inspection surfaces, Steel, Titanium, Welds
Defect ExamplesCold Fatigue cracks, Grinding cracks, Inclusions, Laps, Quenching cracks, Seams, Shrink cracks, Tears, Welding slag
Standards: ASME BPVC, ASTM E1444, ASTM E709
Too Y-2 Electromagnetic NDT Yoke technical data sheet (TDS) and the Y-2 Electromagnetic NDT Yoke safety data sheet (SDS). Visit here
