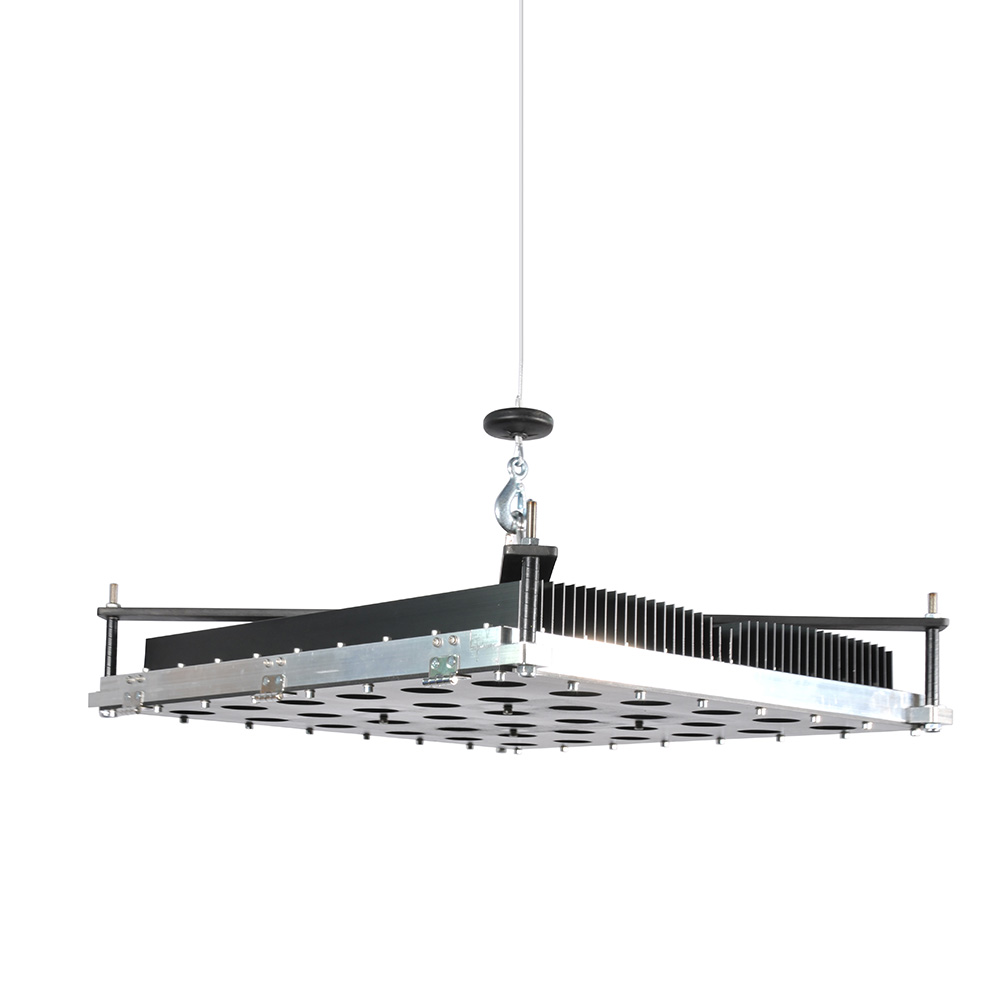

LABINO WASH STATION LIGHT
A UV light, specifically designed to withstand the harsh conditions of a wash station and covering an area of 2 x 2 meters (7 x 7 feet) from 3 meters (10 feet) with a constant intensity of > 300 μW/cm² – probably the largest in the world! The square beam geometry allows for mounting multiple units without dark spots in between.
Cosmos is available in one model only. It comes with a push button to operate the lamp with a 10-meter (3.28 feet) cable. Optional is a foot pedal. The sealing is penetrant resistant, and the lamp is tested to be IP68 classified (waterproof).
P/N L3200: COSMOS
COSMOS kit includes:
|
Eye bolt for easy mounting
An eye bolt holds the unit together with two durable stainless-steel bars.
 |
Replace LED on site
The lamp is designed to be serviced on site. The operator can easily unscrew and pull down the lid, that is fixed with three hinges and replace an LED. No soldering required. No electrical work required. A plug and play solution for your convenience.
| Model | Part.No. | Battery/Mains | UV - A LED | Peak UV irradiance (μW/cm²) at 38.1 cm (15”) | Weight (with batteries) | Beam diameter (> 1000 µW/cm²) | IP68 | Warranty |
|---|---|---|---|---|---|---|---|---|
|
Cosmos |
L300 |
Mains |
36 |
350 (at 3 m) |
36 kg (79.4 lb) |
2 x 2m at 3m (6.56ft x 6.56ft at 9.8ft) |
Yes |
4 years |
| Model | Part.No. | ISO 30 |
|---|---|---|
|
Cosmos |
L3200 |
MainsaYes |
It is used during the intermediate wash step of a penetrant inspection to ensure that excess surface penetrant has been completely removed before applying the developer.
Wash station lights usually have a lower intensity than inspection lights (typically <1000 μW/cm²) to allow technicians to see background fluorescence without "overwhelming" the part.
Yes, most wash station lights are designed to be overhead mounted or wall-mounted with waterproof housings to withstand the high-humidity environment of the rinse area.
