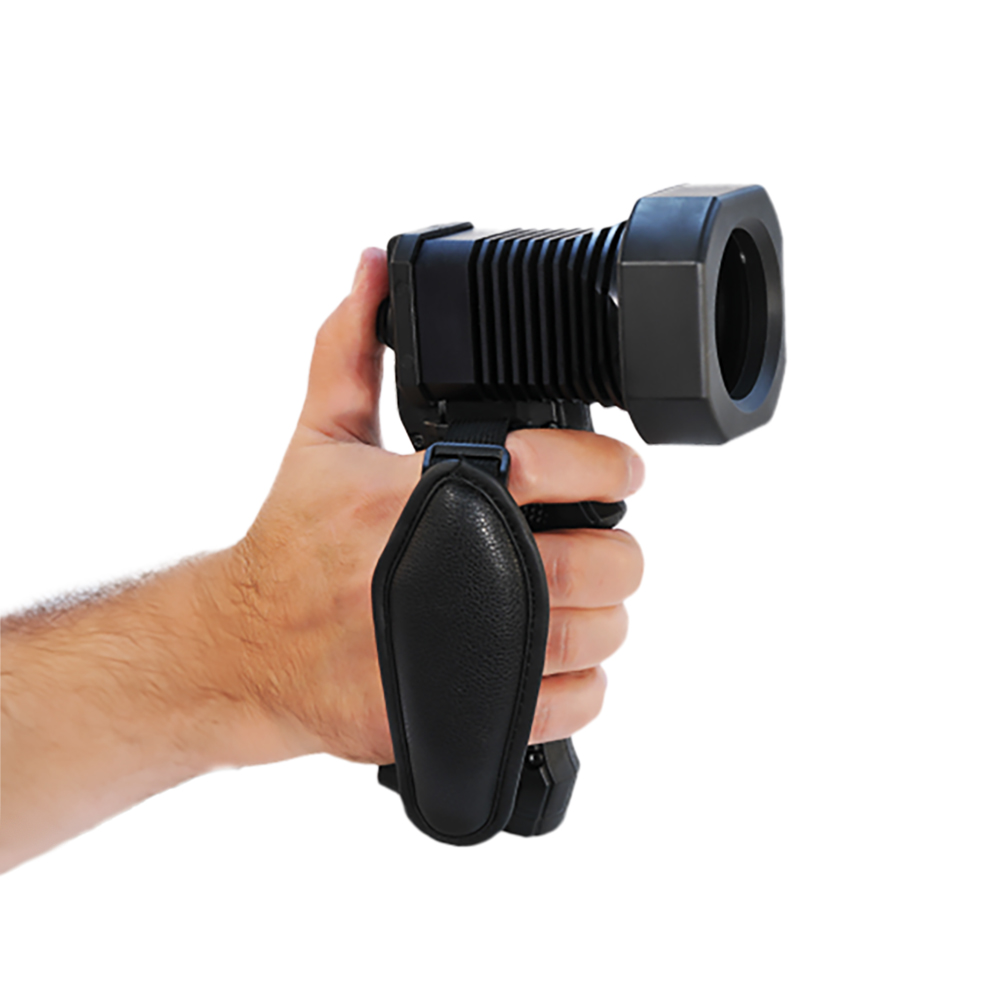

The MB 3.0 Series is designed for everyday use in Non-destructive testing. It is developed to simplify your inspection by adapting the lamp to your personal preferences, your requirements and the character of your parts. What unites all models is a cooling system that offers an extraordinary thermal management, a light weight, a waterproof ingress protection (IP68) and a penetrant resistant sealing.
All battery-operated models come with extra batteries but can also be charged and operated simultaneously.
MB 3.0 ZEUS
MB 3.0 Zeus is designed for users that require a maximum intensity of 5 000 μW/cm² at 38.1 cm/15″ and has an integrated white light.
P/N L118: MB 3.0 Zeus Battery
P/N L122: MB 3.0 Zeus Athena Spray can holder
P/N L119: MB 3.0 Zeus Mains
MB 3.0 HERMES
MB 3.0 Hermes is designed for users that require a maximum intensity of 5 000 μW/cm² at 38.1 cm/15″. Hermes does not have an integrated white light.
P/N L120: MB 3.0 Hermes Battery
P/N L123: MB 3.0 Hermes Athena Spray can holder
P/N L121: MB 3.0 Hermes Mains
| Beam Profile MB 3.0 Zeus & Hermes |  |
MB 3.0 SELENE
MB 3.0 Selene is designed for users preferring a higher intensity. Selene offers 9 000 μW/cm² at 38.1 cm/15″ and has an integrated white light.
P/N L138: MB 3.0 Selene Battery
P/N L140: MB 3.0 Selene Athena Spray can holder
P/N L139: MB 3.0 Selene Mains
MB 3.0 ATLAS
MB 3.0 Atlas is designed for users preferring a higher intensity. Atlas offers 9 000 μW/cm² at 38.1 cm/15″ and does not have an integrated white light.
MB 3.0 Atlas is approved by USAF.
P/N L124: MB 3.0 Atlas Battery
P/N L126: MB 3.0 Atlas Athena Spray can holder
P/N L125: MB 3.0 Atlas Mains
| Beam Profile MB 3.0 Selene & Atlas |  |
MB 3.0 MAINS KIT
|  |
MB 3.0 BATTERY KIT
|  |
| Spray can holder All MB 3.0 models are available with the Athena Aerosol spray can holder. An application that releases one hand and MPI can be performed by one person. |  |
| Battery powered lamps All battery-operated lamps come with 2 extra batteries and a charging PSU. |  |
| Model | Part.No. | Battery/Mains | Aerosol Spray Can holder | White Lights | UV-A LED | Peak UV irradiance (μW/cm²) at 38.1 cm (15”) | Weight (with batteries) | Beam diameter (> 1000 µW/cm²) | Battery running time | IP68 | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB 3.0 Zeus |
L118 L122 L119 |
Battery Mains |
Yes |
Yes |
4 |
4.000 |
650 g (23 oz) 770 g (27 oz) 680 g (24 oz) |
22 cm (8.7”) |
3,5h |
Yes |
3 years
|
|
MB 3.0 Hermes |
L120 L123 L121 |
Battery
Mains |
Yes |
|
4 |
4.000 |
650 g (23 oz) 770 g (27 oz) 680 g (24 oz) |
22 cm (8.7”) |
3,5 |
Yes |
2 years |
|
MB 3.0 Selene |
L138 L140 L139 |
Battery
|
Yes |
Yes |
4 |
9.000 |
650 g (23 oz) 770 g (27 oz) 680 g (24 oz) |
20 cm (7.9”) |
3h |
Yes |
2 years |
|
MB 3.0 Atlas |
L124 L126 L125 |
Battery Mains |
Yes |
|
4 |
9.000 |
650 g (23 oz) 770 g (27 oz) 680 g (24 oz) |
20 cm (7.9”) |
3h |
Yes |
2years |
| Model | Part.No. | ASTM E3022 | Rolls-Royce RRES90061 | Airbus AITM6-1001 | USAF | Pratt&Whitney | The Boeing Co. | ISO 3059-12 |
|---|---|---|---|---|---|---|---|---|
|
MB 3.0 Zeus |
L118 L122 L119 |
Yes |
Yes |
Yes |
|
Yes |
Yes |
Yes |
|
MB 3.0 Hermes |
L120 L123 L121 |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
MB 3.0 Selene |
L138 L140 L139 |
Yes |
|
|
|
Yes |
|
Yes |
|
MB 3.0 Atlas |
L124 L126 L125 |
Yes |
|
|
Yes |
Yes |
|
Yes |
