| Shipping Weight (kg) | 1.5 |
|---|---|
|
EAN |
5014875131825 |
|
Brand |
PCL |
|
Display Type |
Digital |
|
Hose Length |
1.8 m / 6 ft
|
|
Tyre Valve Connection |
Single Clip-on
|
|
Calibration |
0.2-22 bar
|
|
Accuracy |
BS EN 12645:2014
|
|
Inlet / Outlet Connection |
Rp 1/4 |

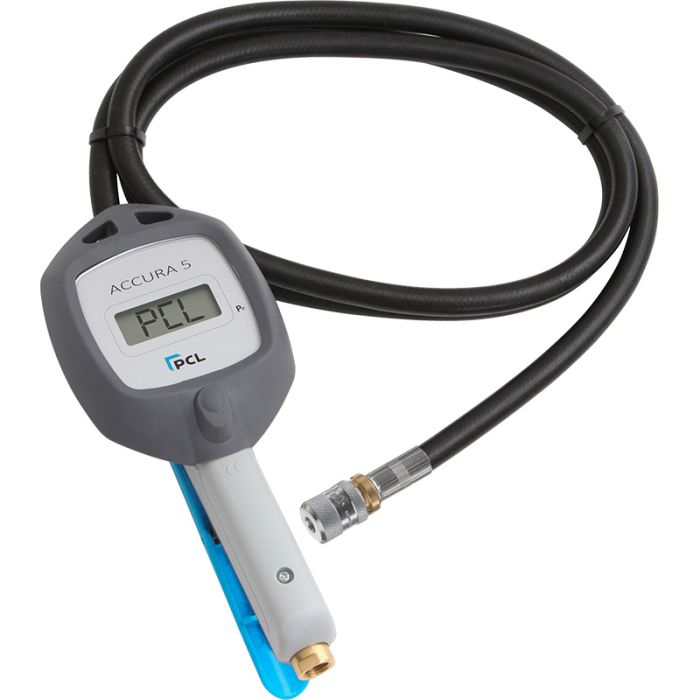

The Accura DAC5 is specifically engineered for aviation, offering a massive inflation and deflation range of $3$ to $319\text{ PSI}$ ($0.2$ to $22\text{ bar}$). This high-pressure capability allows a single handheld unit to service everything from small regional aircraft to the highest-pressure tyres on wide-body commercial jets.
Yes, the DAC5A01 model is typically supplied with a specialized twin-hose assembly. It includes both $8\text{V}1$ (Standard Bore) and $12\text{V}1$ (Large Bore) screw-on connectors, ensuring compatibility with the diverse range of tyre valves found across global aircraft fleets.
The unit features a high-visibility digital display with a reading accuracy of $1\text{ PSI}$ ($0.1\text{ bar}$). It utilizes a ceramic sensor and proprietary software that eliminates "false readings" by providing a stabilized, real-time pressure measurement, which is critical for the precise tolerances required in aviation.
No, the Accura DAC5 features an automatic "Safe-Start" and zero-calibration process every time it is powered on. However, for regulatory compliance (EASA/FAA), each unit is individually tested and supplied with a Calibration Certificate to ensure full traceability for Part 145 maintenance organizations.
