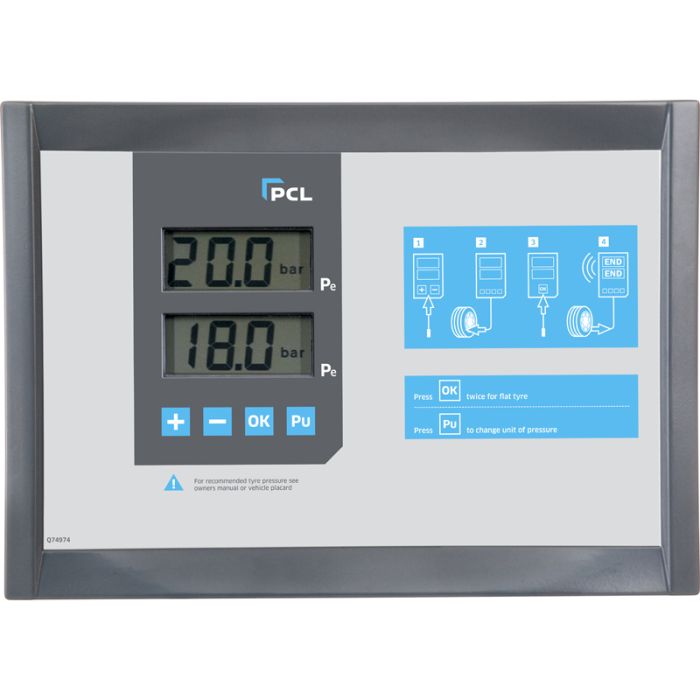

D10 Wall Mounted, Dual Screen, 10 bar, bar/psi
This is the premium pre-set tyre inflator for forecourts, workshops and garages where fast, safe, secure and timesaving inflation is key. Combining the latest electronic inflation technology with user-friendly controls, the D10 allows the operator to pre-set the required pressure and get on with other tasks whilst the inflator does the rest, thereby increasing workshop efficiency. The D10 also reduces operational expenses and long-term equipment costs, whilst actively boosting safety – which is of vital importance to modern regulations.
| Shipping Weight (kg) | 9.627 |
|---|---|
|
EAN |
5014875741925 |
|
Brand |
PCL |
|
Display Type |
Digital |
|
Hose Length |
7.6 m
|
|
Tyre Valve Connection |
Twin Hold-on
|
|
Calibration |
0-145 psi / 0-10 bar
|
|
Display Resolution |
0.1 bar / 1 psi
|
|
Accuracy |
+/- 0.5% Full Scale Deflection
|
|
Maximum Inlet Pressure |
232 psi / 16 bar
|
|
Flow Rate |
2500 l/min @ 10 bar supply
|
|
Temperature Range |
-20°C to 70°C
|
The Aviation-specific Accura D10 is designed for high-pressure environments, offering a specialized inflation range of $4$ to $320\text{ PSI}$ ($0.3$ to $22\text{ bar}$). This significantly exceeds the standard forecourt version, making it suitable for the high-pressure requirements of commercial and military aircraft tyres.
The D10 allows the operator to pre-set the required pressure on the digital display. Once connected, the unit automatically inflates or deflates the tyre to the exact target. This "preset and walk away" feature enables technicians to perform other tasks safely while the inflator handles the time-consuming process of filling large-volume tyres.
The D10 utilizes a high-precision ceramic sensor that guarantees accuracy to $\pm 0.5\%$ of full scale reading. This accuracy exceeds industry standards and international directives, ensuring that critical aircraft tyre pressures are maintained within the tight tolerances required for flight safety.
The D10 is housed in a robust die-cast aluminium housing with an IP54 rating, making it highly resistant to dust and water. It is designed to operate reliably in a wide temperature range ($-20^\circ\text{C}$ to $70^\circ\text{C}$), making it ideal for both indoor maintenance bays and outdoor transit lines.
