LABINO UVG5 2.0 SERIES
UVG5 2.0 Floodlight is designed to meet the strictest aerospace requirements that has a maximum intensity of 5 000 μW/cm² at 38.1 cm/15″ and needs an even beam profile.
P/N L130: UVG5 2.0 Floodlight UV & WH
P/N L131: UVG5 2.0 Floodlight UV only
| Beam Profile UVG5 2.0 Floodlight |  |
UVG5 2.0 Midlight is designed to meet requirements with a maximum intensity of 10 000 μW/cm² at 38.1 cm/15″.
P/N L128: UVG5 2.0 Midlight UV & WH
P/N L129: UVG5 2.0 Midlight UV Only
NSN for P/N L129: 6230-64-002-0947
| Beam Profile UVG5 2.0 Midlight |  |
UVG5 2.0 Spotlight is designed for applications that requires an ultra-intense UV-A intensity exceeding 80 000 μW/cm2 at 38.1 cm/15″.
P/N L127: UVG5 2.0 Spotlight UV & WH
| Beam Profile UVG5 2.0 Spotlight |  |
UVG5 2.0 Spotlight is designed for applications that requires an ultra-intense UV-A intensity exceeding 80 000 μW/cm2 at 38.1 cm/15″.
P/N L127: UVG5 2.0 Spotlight UV & WH
UVG5 2.0 KIT includes:
|  |
| On/off switch in stainless steel for durability and contact for charging PSU. |  |
| Charger for charging without taking out the batteries. |  |
| Batteries can easily be replaced, 2 extra batteries are included in the kit. |  |
| Model | Part.No. | Battery/Mains | White Lights | UV-A LED | Peak UV irradiance (μW/cm²) at 38.1 cm (15”) | Weight (with batteries) | Beam diameter (> 1000 µW/cm²) | Battery running time | IP68 | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|
|
UVG5 2.0 Floodlight UV |
L131 |
Battery |
|
1 |
4.000 |
610 g (21.5 oz) |
12 cm (4.8”) |
8h |
Yes |
3 years
|
|
UVG5 2.0 Floodlight UV & WH |
L130 |
Battery |
Yes |
1 |
4.000 |
610 g (21.5 oz) |
12 cm (4.8″) |
8h |
Yes |
3 Years |
|
UVG5 2.0 Midlight UV |
L129 |
Battery |
|
1 |
9.000 |
600 g (21.2 oz) |
10.5 cm (4.2”) |
12h |
Yes |
3 Years |
|
UVG5 2.0 Midlight UV & WH |
L128 |
Battery |
Yes |
1 |
9.000 |
600 g (21.2 oz) |
10.5 cm (4.2”) |
12h |
Yes |
3 years |
|
UVG5 2.0 Spotlight UV |
L127 |
Battery |
Yes |
1 |
80.000 |
600 g (21.2 oz) |
10.5 cm (4.2”) |
12h |
Yes |
3 years |
| Model | Part.No. | ASTM E3022 | Rolls-Royce RRES90061 | Airbus AITM6-1001 | USAF | Pratt&Whitney | The Boeing Co. | ISO 3059-12 |
|---|---|---|---|---|---|---|---|---|
|
UVG5 2.0 Floodlight UV |
L131 |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
UVG5 2.0 Floodlight UV & WH |
L130 |
Yes |
Yes |
Yes |
|
Yes |
Yes |
Yes |
|
UVG5 2.0 Midlight UV |
L129 |
Yes |
|
|
Yes |
Yes |
|
Yes |
|
UVG5 2.0 Midlight UV & WH |
L128 |
Yes |
|
|
|
Yes |
|
Yes |
|
UVG5 2.0 Spotlight UV |
L127 |
Yes |
|
|
|
|
|
Yes |
These are stationary UV-A LED panels designed for automated or semi-automated inspection lines (Wash Stations). They feature sensor-driven activation that triggers the light only when a part is present, extending the lifespan of the LEDs and reducing energy consumption while providing a massive, uniform inspection beam.
Absolutely. Our compact NDT light systems are designed to meet ASTM E3022-18 and Rolls-Royce RRES 90061 standards. They provide a perfectly uniform beam without "hot spots," which is critical for passing strict aerospace quality audits.

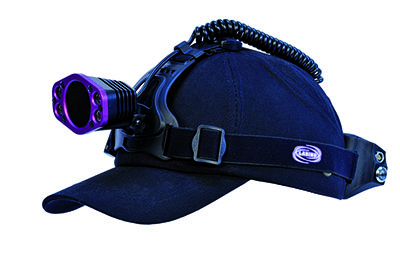

For inspections in confined spaces like fuel tanks or engine bays, hands-free UV-A headlights are essential. Labino UV-A headlights provide a consistent 365 nm wavelength without white light leakage, ensuring that fluorescent indications remain highly visible during critical crack detection.
Yes, we supply models that are ATEX and IECEx certified for use in Zone 1 explosive atmospheres. This makes them the industry standard for safe fluorescent penetrant or magnetic particle inspections inside aircraft fuel systems.
