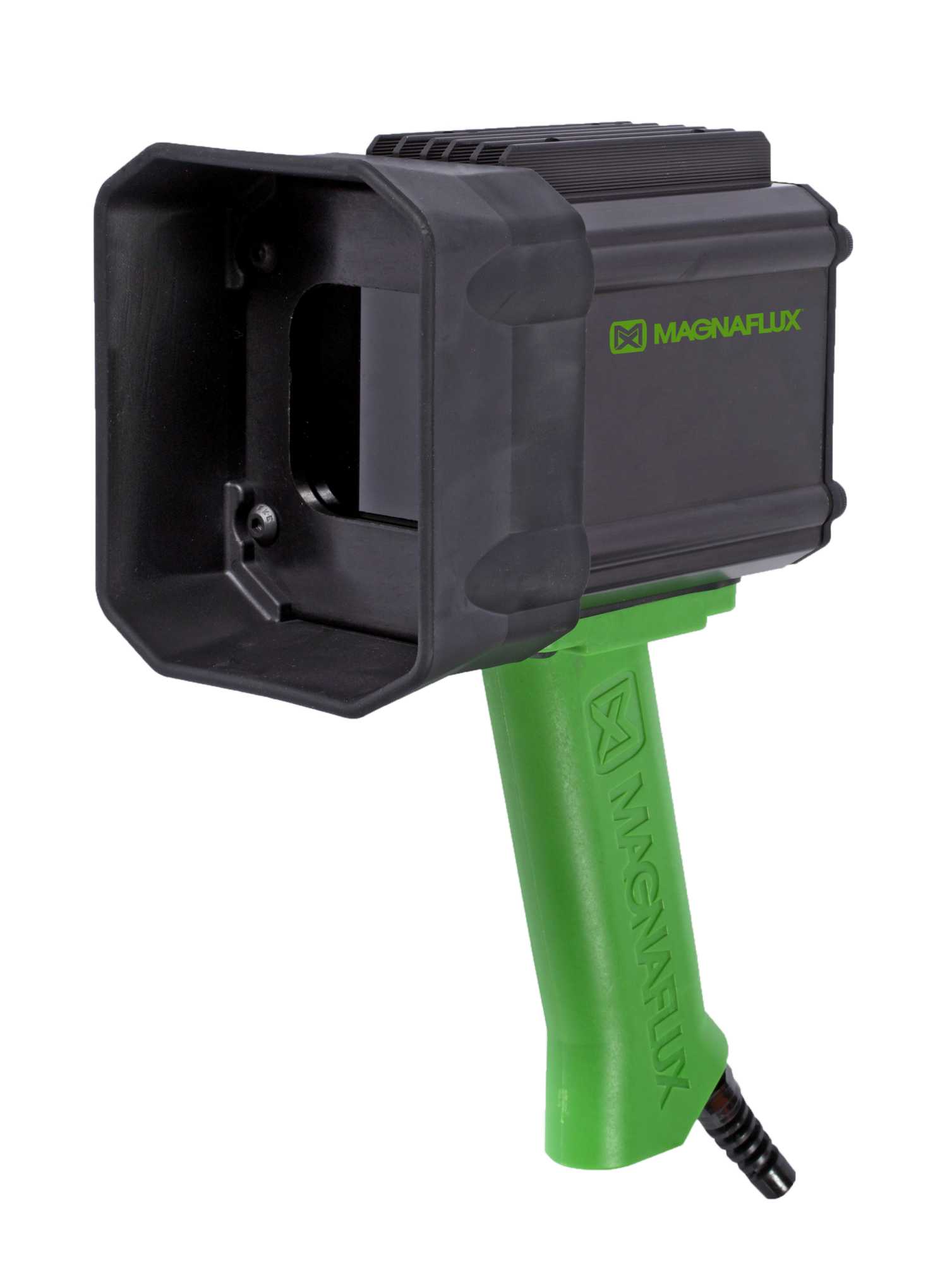

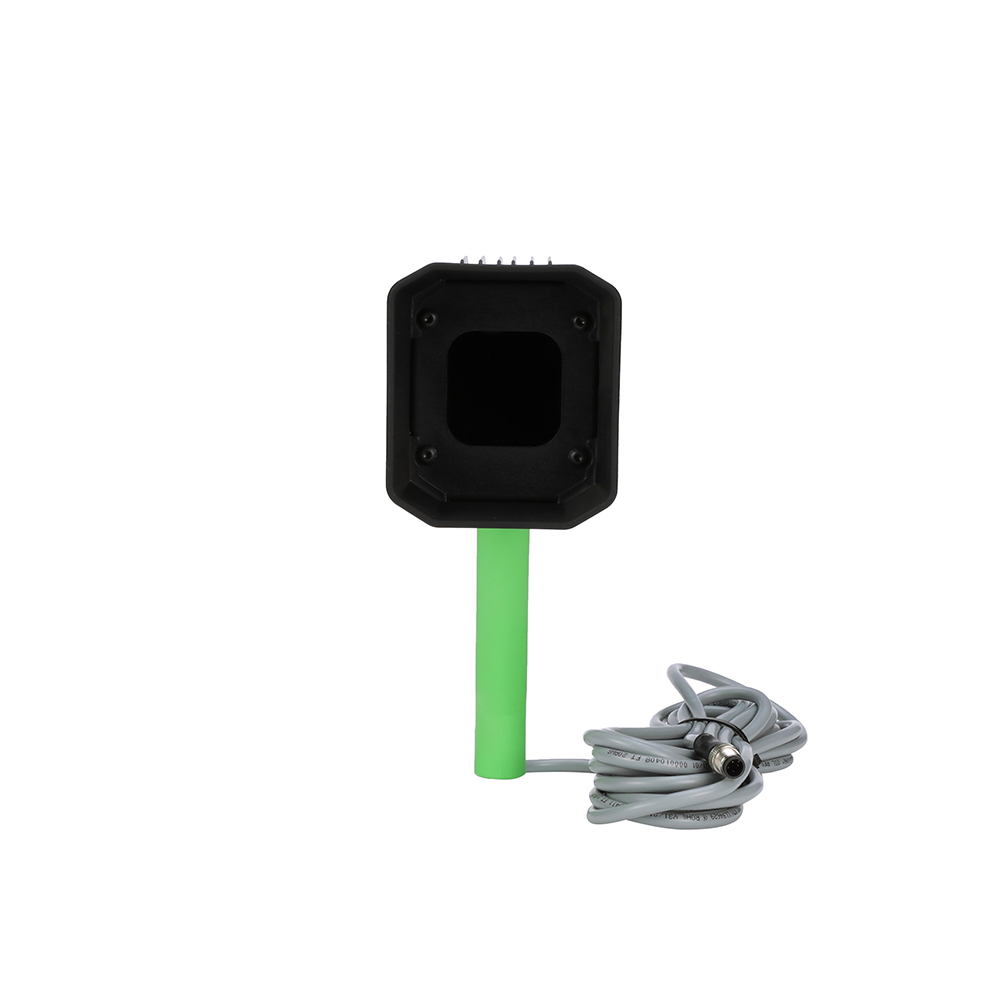

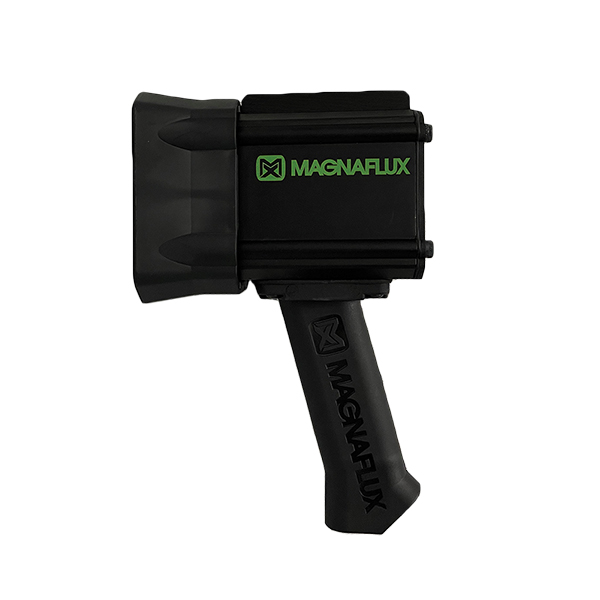

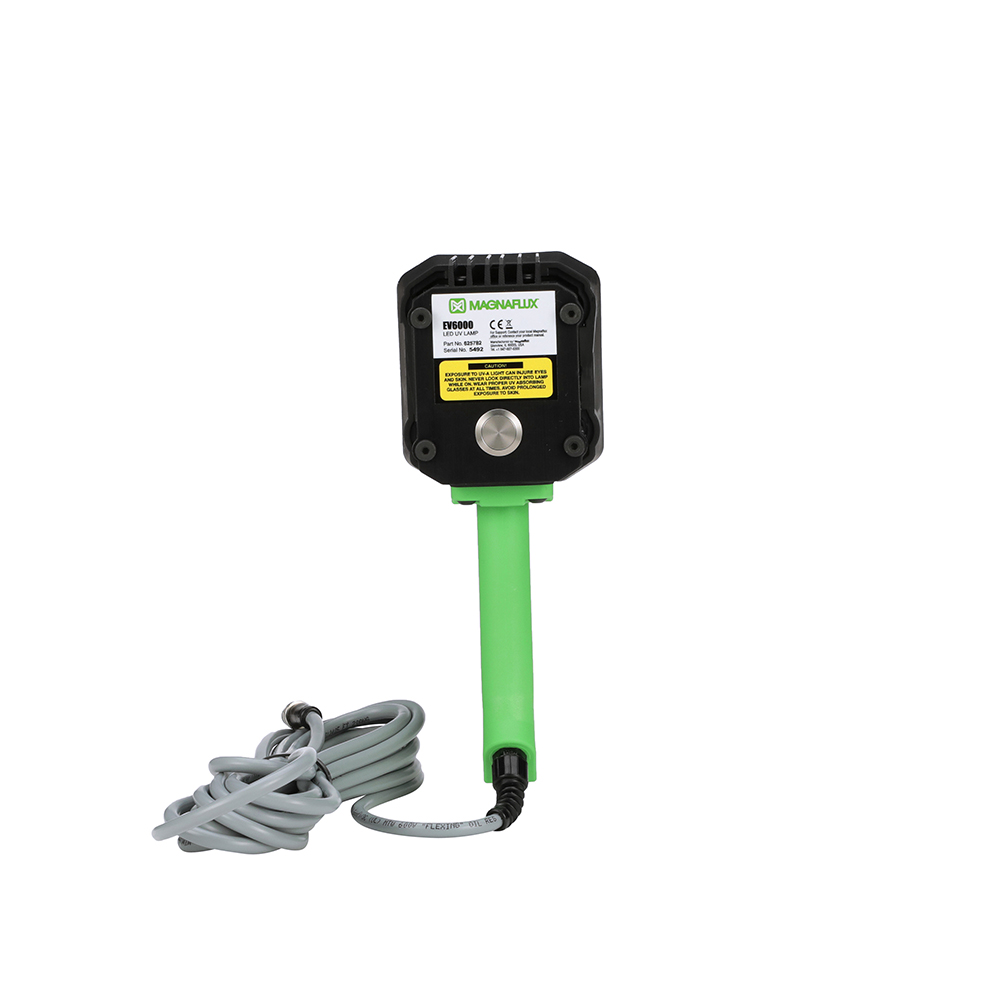

The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.
The EV6000 features a uniform beam with no hot-spots and a 9 in / 23 cm wide beam, 33% wider than the next widest hand-held UV lamp in the industry.
Custom-designed optics provide intense and even UV-A coverage of UV-A to easily identify indications, and an integrated filter ensures minimal visible light emission to improve inspection reliability.
The EV6000 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile. Each unit is shipped with a manufacturer’s certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.
| Technical information | |
|---|---|
|
NDT Type |
Fluorescent Penetrant Testing and Fluorescent Magnetic Particle Inspection |
Minimizes time to inspect parts
Maximize range of inspections
Too see EV6000 Hand-Held LED UV Lamp technical data sheet (TDS) and the EV6000 Hand-Held LED UV Lamp safety data sheet (SDS). Visit here
