| Suction Tube lenght (mm) | Article No. | Version (Container) | max. Container height (mm) |
|---|---|---|---|
|
288 |
4060910 |
1 – 5 kg |
280 |
|
370 |
4035100 |
14 – 18 kg |
365 |
|
473 |
4035200 |
20 – 25 kg |
470 |
|
720 |
4035300 |
50 kg |
715 |
|

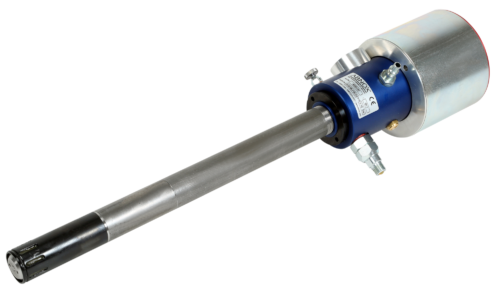

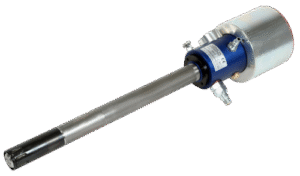

845 |
4035400 |
180 kg |
840 |
| Description | Article No. |
|---|---|
|
Seal Kit Air Motor
|
4879600 |
|
Seal Kit Suction System
|
4039500
|
|
Cylinder complete
|
3078200
|
|
Conversion Kit
|
4039800 |
|
Repair Kit
|
4039400 |
|
Adapter cpl |
4021401 |
| Suction tube dia. [mm] | 32 |
|---|---|
|
Input medium specification
|
Lubricants up to NLGI 3 / 5’000 mPa.s
|
|
Delivery rate at pump outlet [cm3/min]
|
500 |
|
Delivery rate per double stroke [cm3]
|
7.5 |
|
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
|
335 |
|
Working pressure medium outlet at pneumatic operating pressure 10 bar |
555 |
|
Connection medium outlet external thread |
1/4” BSP |
|
Compressed air quality |
ISO 8573-1:2020 [6:4:4] |
|
Max. air consumption [l/min.] |
217 |
|
Optimum pneumatic operating pressure |
6 |
|
Min. / max. pneumatic operating pressure |
2/10 |
|
Pneumatic connection internal thread |
1/4” BSP |
|
Min. / max. operatingtemperature [°C] |
10/40 |
