D60 Tyre Inflator Compact Unit 230V psi/bar
ACCURA Compact, offers simple, safe and accurate means of tyre inflation within a space-saving and cost-effective, lightweight unit.
The robust engineering plastic design offers longer life and low maintenance, whilst the durable ceramic sensor enables extremely precise measurement, with tolerances well above the industry standard BS EN 12645:2014.
This makes it ideal for car dealerships, garages, car fleets and OEM applications, where ease of use, accuracy and reliability are key.
| Shipping Weight (kg) | 5.216 |
|---|---|
|
EAN |
5014875744681
|
|
Brand |
PCL |
|
Display Type |
Digital |
|
Hose Length |
7.6 m
|
|
Tyre Valve Connection |
Twin Hold-on
|
|
Calibration |
0-145 psi / 0-10 bar
|
|
Display Resolution |
1 psi / 0.1 bar
|
|
Accuracy |
BS EN 12645:2014
|
|
Maximum Inlet Pressure |
232 psi / 16 bar
|
|
Flow Rate |
400 l/min @ 10 bar supply
|
|
Temperature Range |
-20°C to 70°C
|

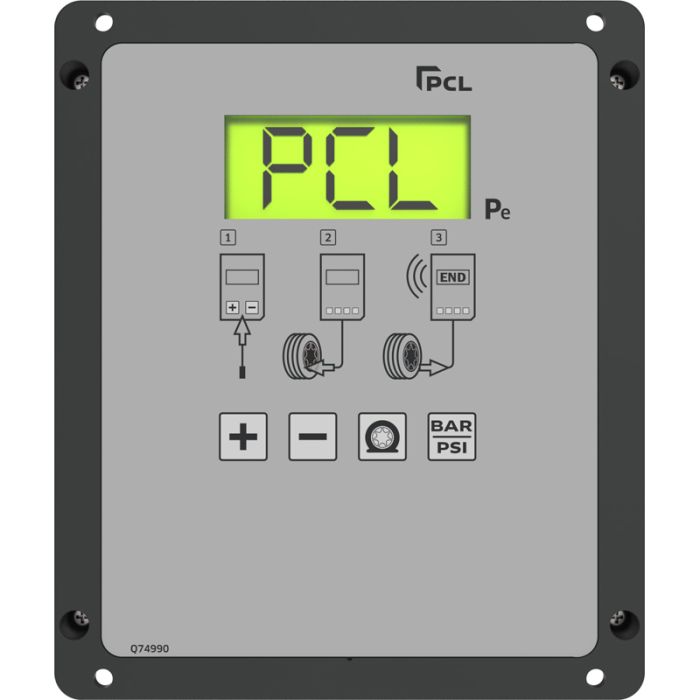

The Accura D60 is a compact, electronic pressure control module designed for original equipment manufacturers (OEMs) and maintenance shops. It allows users to pre-set a target pressure, at which point the unit automatically manages the inflation or deflation process, making it ideal for integration into Nitrogen generators or mobile inflation carts.
The D60 features a robust ceramic sensor that provides high precision (accurate to $\pm 0.5\%$ of full scale), far exceeding industry standards. It includes a clear digital display, a durable touch-screen keypad, and proprietary software designed to provide a "safe-start" and automatic "end-of-cycle" audible signal.
The standard D60 model supports inflation up to $145\text{ PSI}$ ($10\text{ bar}$), while the D60 HP (High Pressure) variant is capable of handling up to $232\text{ PSI}$ ($16\text{ bar}$). Both versions are designed to handle high flow rates of up to $400\text{ L/min}$ at a $10\text{ bar}$ supply.
Yes, the unit is housed in a reinforced polycarbonate, weather-resistant body with an IP66 rating (on some models). This makes it highly resistant to dust and water ingress, ensuring reliable performance in both indoor maintenance hangars and outdoor forecourt applications.
