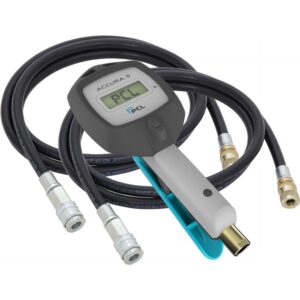

ACCURA 5 Inflator 3-319 psi, 2m Hose with 8v1 Screw-On Connector & 2m Hose with 12v1 Screw-On Connector
The Digital Tyre Inflator is the latest in its line for high pressure Aviation applications. This takes PCL’s
market-leading digital tyre inflator, building on its worldwide reputation for fast, accurate and trouble-free inflation suitable for Aviation applications.
The ACCURA 5 from PCL offers the lightest and fastest inflation and deflation rates in a robust plastic housing.
This product features brass inlet and outlet valves, metal internal fittings and strong engineering plastics to cope with both the high pressure and the high usage environments seen in line and base maintenance.
| Shipping Weight (kg) | 1.78 |
|---|---|
|
EAN |
5014875131740 |
|
Brand |
PCL |
|
Display Type |
Digital |
|
Hose Length |
4G1 Hydraulic Oil Resistant Armored Hose
|
|
Tyre Valve Connection |
8V1 & 12V1 Screw-on
|
|
Calibration |
3-319 psi
|
|
Display Resolution |
1 psi
|
|
Maximum Inlet Pressure |
350 psi / 24 bar
|
|
Inlet / Outlet Connection |
Rp 1/4
|
The Accura 5 is purpose-built for the extreme demands of aviation, featuring a massive inflation range of $3$ to $319\text{ PSI}$ ($0.2$ to $22\text{ bar}$). It combines a lightweight, shock-resistant body with metal internal fittings and brass valves to withstand both high pressure and the heavy usage typical of line and base maintenance.
The Accura 5 offers a high-resolution digital display with a reading accuracy of $1\text{ PSI}$ ($0.1\text{ bar}$). It utilizes a sophisticated ceramic sensor and proprietary software designed to provide fine metering and eliminate "false readings," ensuring technicians get a "true" pressure reading every time.
Yes, the Accura 5 is fully compatible with Nitrogen, compressed air, and other inert gases. For aviation safety, it is often supplied with 4G1 hydraulic oil-resistant armored hoses, which are specifically designed to resist degradation when exposed to Skydrol and other phosphate-ester hydraulic fluids.
For safety and to prevent sensor damage, the PCL Nitrogen Analyser should not be connected to closed pressure systems exceeding 175 psi (12 bar). When testing high-pressure aircraft tyres, ensure a proper sampling valve is used to bleed a small, controlled flow of gas across the sensor.
