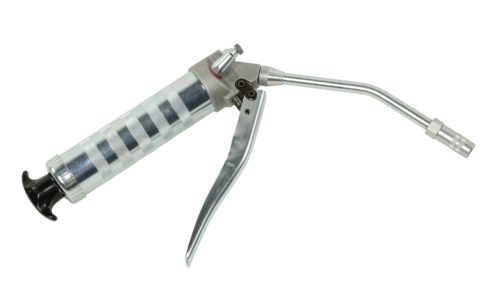

The Small One-hand Pump, Art. no. 3095300, is equipped with a replaceable conical Filler Cap with integrated Non-return Valve.
The Small One-hand Pump, Art. no. 3095200, on the other hand, is equipped with a cylindrical Filler Cap in accordance with DIN 1283, also with an integrated Non-return Valve.
Both models are ideal for separate filling with manual or Air-operated Filler Pump.a
| Article No. | Capacity Cylinder [cm3] | Design | Filler Cap | Connection Medium Outlet | SET Version |
|---|---|---|---|---|---|
|
3095200 |
120 |
Chain pull |
Cylindrical DIN 1283 |
1/8” BSP internal thread |
Rigid Tube with Connector |
|
3095300 |
120 |
Chain pull |
Conical |
1/8” BSP internal thread |
Rigid Tube with Connector |
| Specification | Article No. | Quantity |
|---|---|---|
|
Rigid Angled Feed Tube, length = 180 mm, Connector 1/8” BSP
|
3549300
|
1 piece
|
|
4-piece Hydraulic Connector EXCELLENT, external dia. 14 mm, length = 40 mm |
3659000 |
1 piece |
| Description | Article No. |
|---|---|
|
Pump Head complete with Filler Cap cylindrical DIN 1283
|
0005719
|
|
Pump Head complete with Filler Cap conical
|
0005649
|
|
Cylinder complete
|
3078200
|
|
Seal Kit
|
3083000
|
| Capacity cylinder [cm3] | 120 |
|---|---|
|
Cylinder external dia. [mm]
|
40 |
|
Cylinder wall thickness [mm]
|
1.5
|
|
Cylinder lenght [mm]
|
150
|
|
Filling by hand or with filling machine
|
YES / 120 g
|
|
Input medium specification
|
Lubricants up to NLGI 2 / 5’000 mPa.s
|
|
Delivery rate per stroke [cm3]
|
0.5
|
|
Operating pressure [bar]
|
400
|
|
Max. pressure [bar]
|
600
|
|
Connection medium outlet internal thread
|
1/8” BSP
|
|
Connection filter cap “F” internal thread
|
1/8” BSP
|
|
Connection air vent “E” internal thread
|
1/8” BSP
|
|
Min. / max. operatingtemperature [°C]
|
10/40
|
|
Weight [kg]
|
0.664
|
